Fire HD 8 kept saying moisture detected: repairing the USB-C port.

This K72LL3/K72LL4-generation Fire HD 8 repeatedly displayed a moisture warning. The board-level repair removed the affected USB-C connector and fitted a replacement.

Published by Fixaviour · UK repair guides · Article added · Updated

WATCH THE WORKSHOP RECORD

Kindle Fire HD 8 moisture-detected USB-C port repair

Similar symptoms? Book a £35 assessment ↗

Silent workshop footage · 30 seconds. A visual description and the limits of this record follow below.

Website video edition: . The original social post may have been published earlier.

Original on Instagram (opens in a new tab) ↗Open the video directly ↗

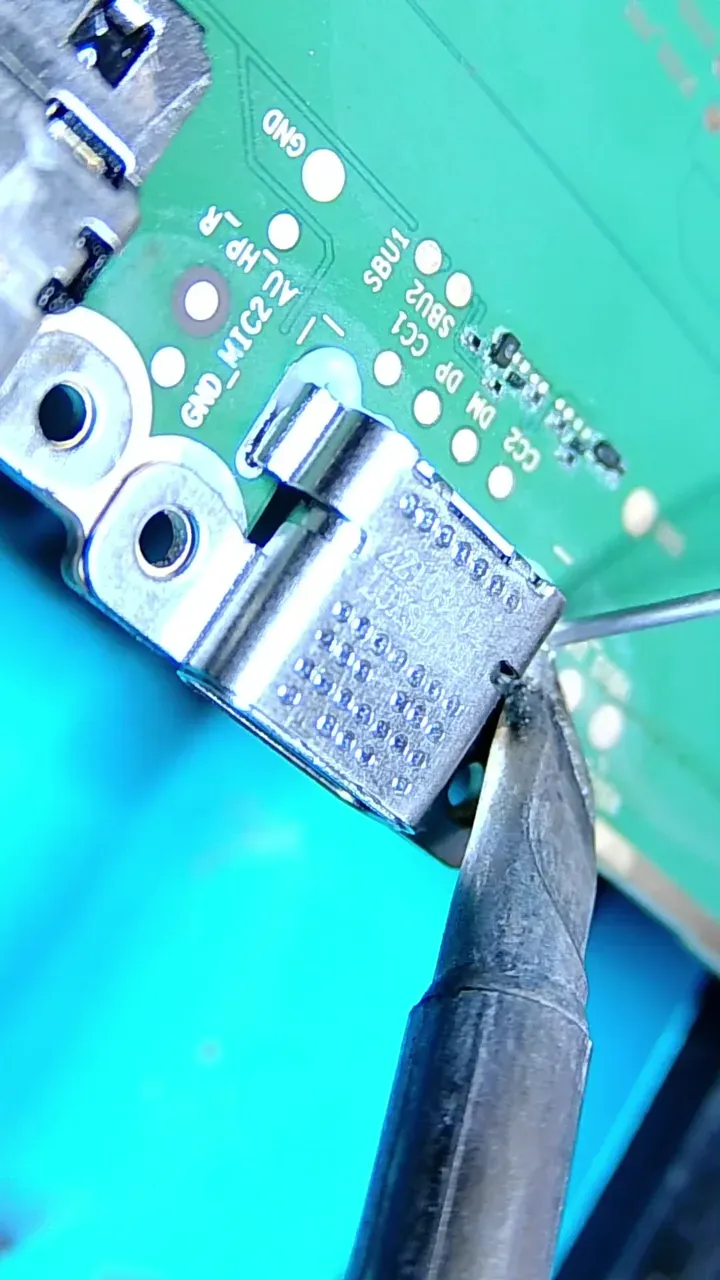

Replacement USB-C connector being fitted to an Amazon Fire HD 8 10th generation board
Frame from the earlier Tech2Fix-era Fire HD 8 repair footage, now published by Fixaviour, around 15 seconds.

FROM THE WORKSHOP FOOTAGE

Visual description and bench findings

The footage shows the original USB-C connector removed, the board connection area prepared and a replacement port fitted. The technician's record identifies the device as a Fire HD 8 10th Gen, K72LL3/K72LL4, with a repeating moisture-detected warning.

Scope of the record

The video is primarily a connector-replacement sequence. It does not preserve a complete corrosion inspection, USB data test or extended charging log.

A moisture warning does not always prove liquid is present now

The warning reflects what the port-detection circuit is seeing. Contamination, connector damage or an electrical problem can continue to trigger it even when the outside of the socket appears dry.

The repair focused on the USB-C connector

The affected connector was removed, the solder area prepared and a replacement aligned and fitted. Charging was verified after the repair.

Why repeated drying attempts may not solve it

If a warning persists because the connector or its sensing path is damaged, waiting for evaporation cannot reconstruct the electrical contact. Inspection is appropriate when the message repeatedly returns.

Avoid forcing charging through an unexplained warning

Repeated reconnection or attempting to override a genuine moisture condition can worsen corrosion or damage. Disconnect the cable, allow the device to dry safely and arrange assessment if the warning persists.
