Xbox Series X no image: replacing and testing the HDMI port.

This Series X had no usable HDMI output. The console was disassembled, its connector replaced and the completed repair checked electrically and on a monitor.

Published by Fixaviour · UK repair guides · Article added · Updated

WATCH THE WORKSHOP RECORD

Xbox Series X no-image HDMI-port repair

Console availability: email an enquiry ↗

Silent workshop footage · 29 seconds. A visual description and the limits of this record follow below.

Website video edition: . The original social post may have been published earlier.

Original on Instagram ↗Open the video directly ↗

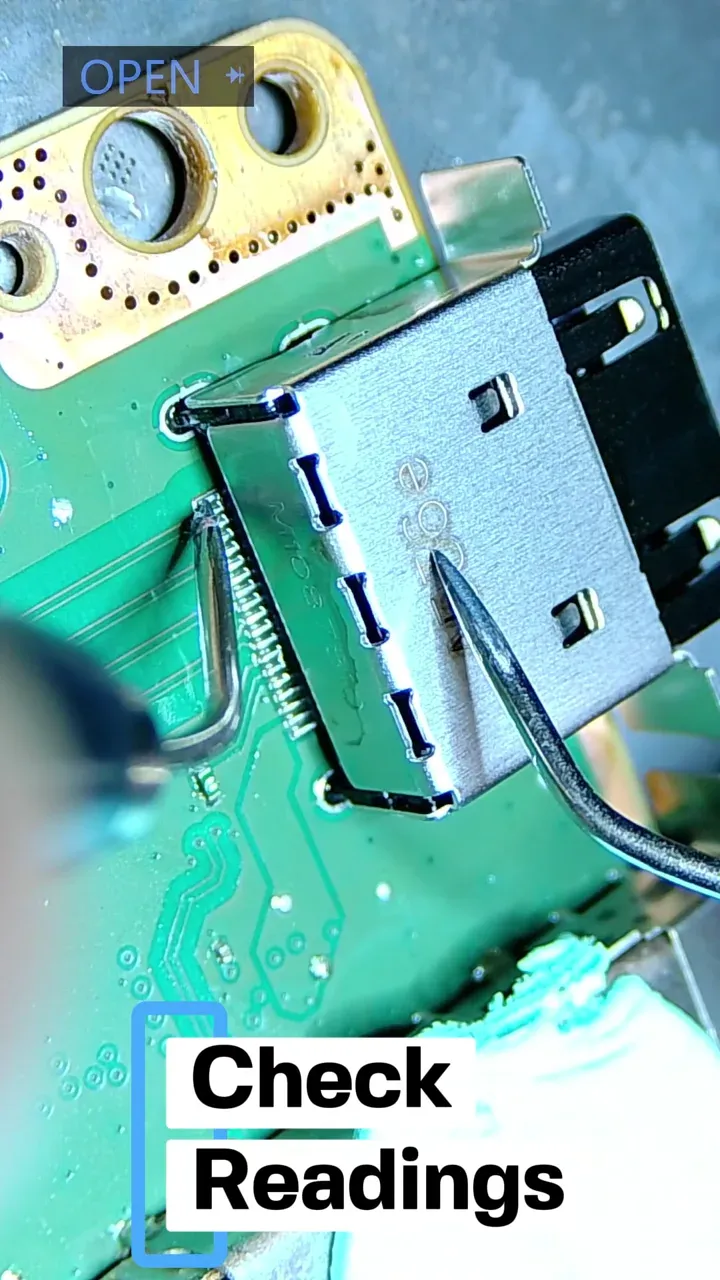

Replacement HDMI port fitted to an Xbox Series X board under magnification
Frame from Fixaviour's Xbox Series X HDMI repair footage, around 14 seconds.

FROM THE WORKSHOP FOOTAGE

Visual description and bench findings

The HDMI connector was removed and replaced without any required trace reconstruction. Pin readings were checked after soldering, and the reassembled console produced picture and sound on a monitor.

Scope of the record

The workshop edit documents this repair sequence and final output check. It is not evidence that the HDMI port is the cause of every Series X no-image complaint.

The initial symptom was no image

A blank display tells us the output path is not completing, but it does not identify the connector by itself. Physical inspection and electrical readings determined the repair route on this console.

No board traces needed rebuilding

The damage was resolved with connector replacement. The solder pads and traces remained suitable for preparation and fitting without jumper work.

Readings came before reassembly

The connector pins were checked after soldering, reducing the risk of closing the console around an unnoticed bridge or missing connection.

The monitor test covered video and audio

After reassembly, the console produced both picture and sound. That closing test is the practical evidence supporting the recorded outcome.
