Dead iPad Air 4: investigating the charging circuit.

This iPad Air 4 would not respond. The workshop footage identifies a short circuit in the charging area and shows work on the small components inside.

Published by Fixaviour · UK repair guides · Article added · Updated

WATCH THE WORKSHOP RECORD

Dead iPad Air 4 CD3217B12 charging-controller repair

Similar symptoms? Book a £35 assessment ↗

Silent workshop footage · 11 seconds. A visual description and the limits of this record follow below.

Website video edition: . The original social post may have been published earlier.

Original on TikTok (opens in a new tab) ↗Open the video directly ↗

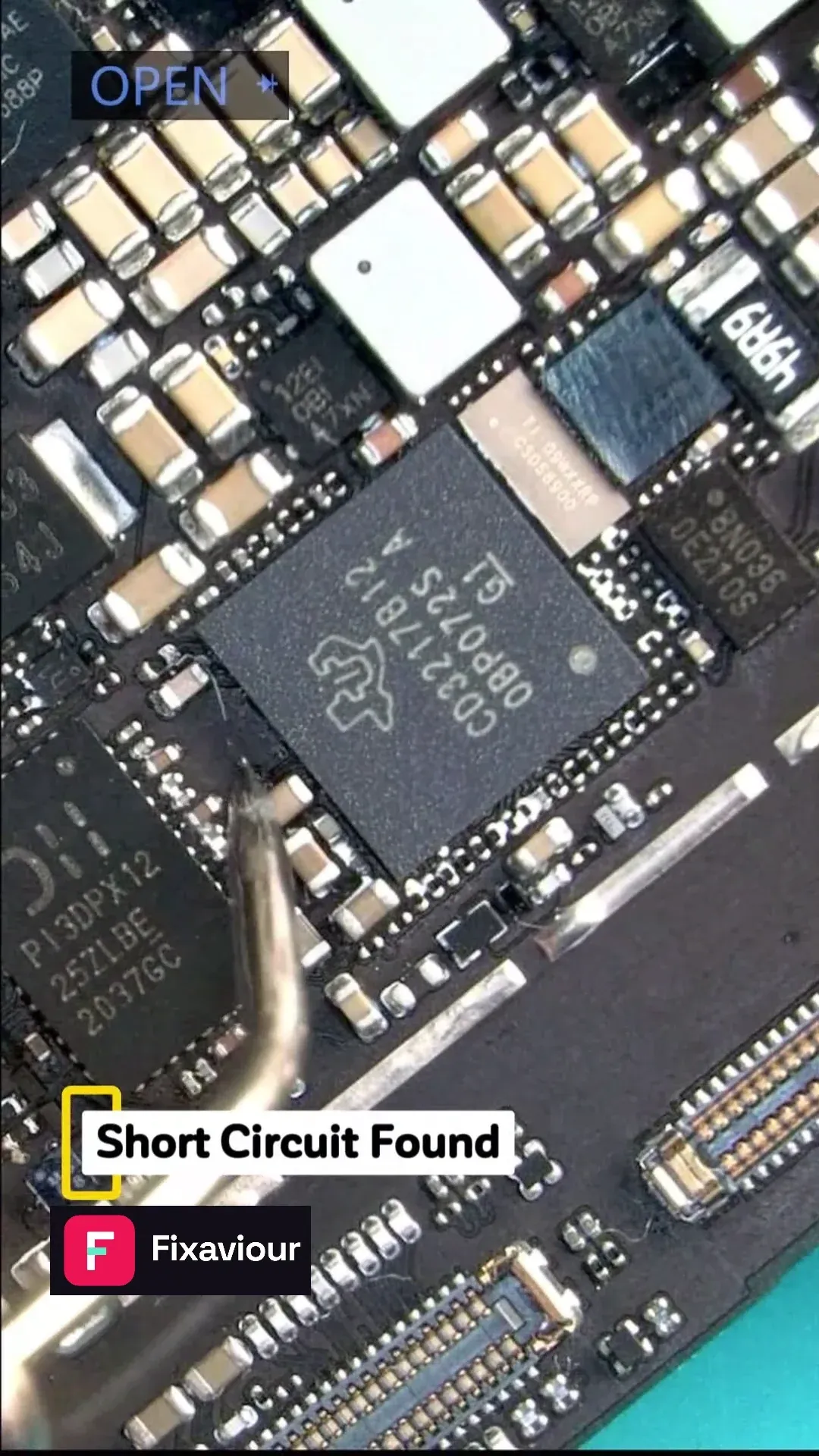

Probe beside CD3217B12 charging-circuit components on an iPad Air 4 logic board
Frame from Fixaviour's iPad Air 4 workshop video, at 7.83 seconds.

FROM THE WORKSHOP FOOTAGE

Visual description and bench findings

Testing found a short on an output rail from CD3217B12. Removing that controller cleared the short; replacing it restored operation. The reel later shows roughly 30 watts of input and a working display.

Scope of the record

The exact output rail was not retained in the record. A non-liquid-damaged port made an unsuitable charger a possibility, not a proven cause, so the page does not attribute responsibility to the charger.

A dead screen did not identify the failed circuit

The customer-facing symptom was a dead iPad. That observation could also fit a depleted battery, an interrupted connection or a display fault. The recorded investigation moved into the board charging area, rather than treating the lack of response as proof that the tablet was beyond repair.

Removing CD3217B12 separated cause from symptom

Checks around charging controller CD3217B12 found one of its output rails shorted. The short disappeared when the IC was desoldered, providing a component-level confirmation before the replacement was fitted. The exact rail name was not retained, so it is deliberately not invented here.

How the charger history helps an assessment

Tell us which adapter and cable were in use and whether changing either affected the symptoms. That information helps plan a comparison with suitable equipment. Finding a fault in the charging system does not, by itself, establish that an accessory caused it; that conclusion would need further evidence.

What another Air 4 owner can take from this

Record whether the device stopped suddenly, gradually ran flat or changed after another repair. Tell us whether there are sounds or signs that it starts behind a dark screen. The assessment of your iPad establishes whether its fault lies in a battery, connection, display or board circuit before repair is quoted.
