iPhone 15 Pro Max stuck at 1%: inside the board repair.

This iPhone 15 Pro Max stayed at 1% while connected to power. Testing showed that charging controller U4000 was not producing the required VDD_MAIN, so the repair moved inside the sandwich board.

Published by Fixaviour · UK repair guides · Article added · Updated

WATCH THE WORKSHOP RECORD

iPhone 15 Pro Max stuck at 1% charging-controller repair

Similar symptoms? Book a £35 assessment ↗

Silent workshop footage · 29 seconds. A visual description and the limits of this record follow below.

Website video edition: . The original social post may have been published earlier.

Original on Instagram (opens in a new tab) ↗Open the video directly ↗

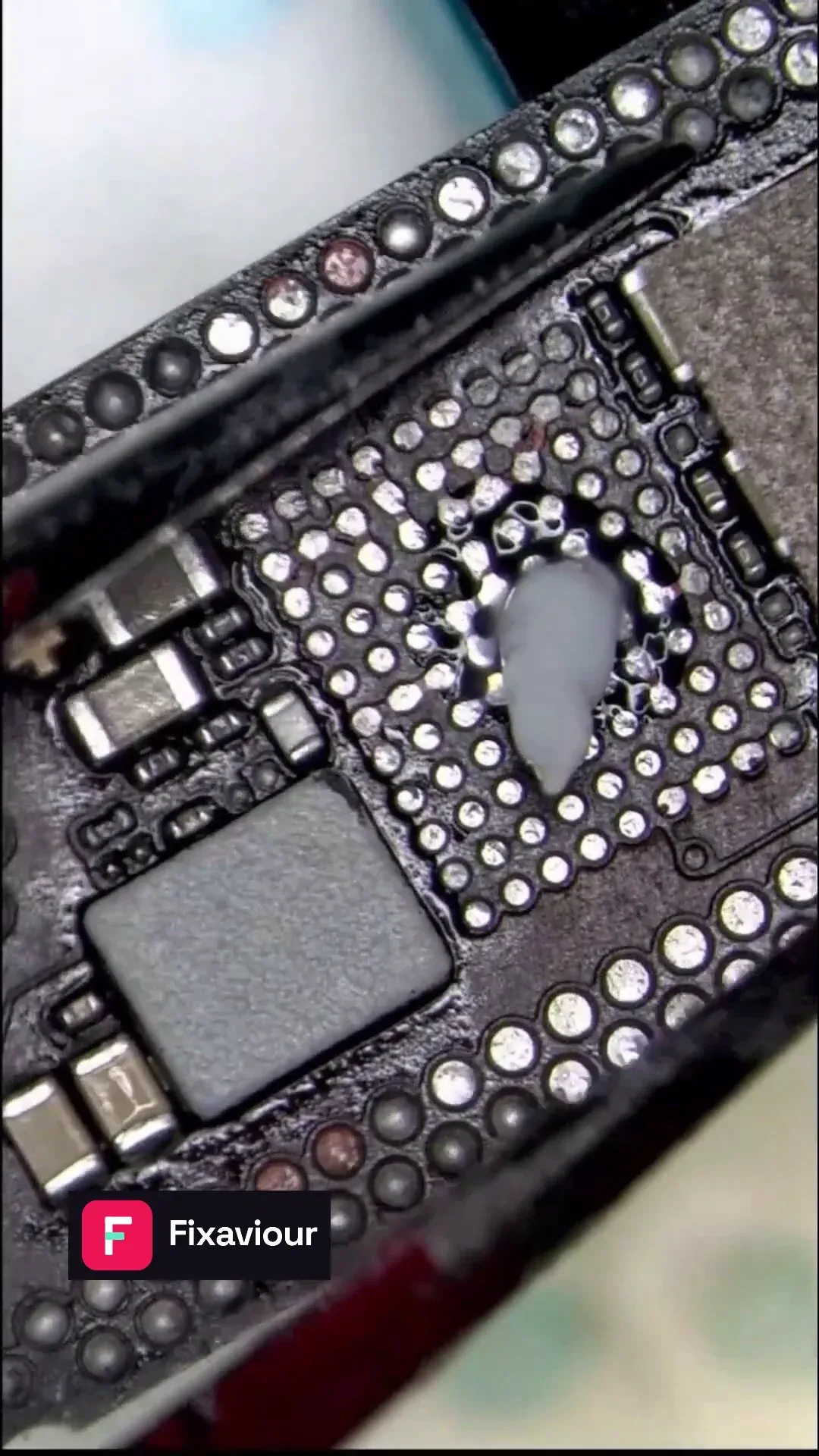

Microscope frame showing exposed pads during iPhone 15 Pro Max U4000 charging-controller work
Frame from Fixaviour's iPhone 15 Pro Max charging-repair reel, at 11.28 seconds.

FROM THE WORKSHOP FOOTAGE

Visual description and bench findings

Bench testing found that 343S00946-B0, board designator U4000, was not producing the required VDD_MAIN. The footage shows board separation, IC replacement and reballing, followed by an input reading of about 25 watts and battery-percentage movement.

Scope of the record

The edited reel is not a complete test report. The result belongs to this phone; it does not establish that every iPhone stuck at 1% has the same failed component.

The reported symptom: a percentage that stayed at 1%

The workshop description records the phone as stuck at 1%. That complaint can easily sound like a battery-only problem. It is more useful to establish whether the phone detects the cable, draws input power, stores charge and remains running after unplugging. Those observations describe different parts of the charging process.

The missing output led to U4000

This case was not diagnosed from the 1% display alone. Measurements showed that U4000, part 343S00946-B0, was not producing the required VDD_MAIN. That finding justified separating the board and replacing the controller rather than guessing at the battery or charging port.

What the charging reading establishes

After the board work, the recorded test reached approximately 25 watts and the displayed battery percentage began moving. That supports the repair outcome in this setup, but it is not a target for every 15 Pro Max or a complete battery-capacity test.

How this helps with your own charging complaint

Describe whether the percentage is stuck, the phone switches off after unplugging, or charging drops when the cable moves. Include previous battery or port work. Fixaviour's assessment checks the actual device before proposing a connection, battery or board repair, with written findings and a quote before you decide.
